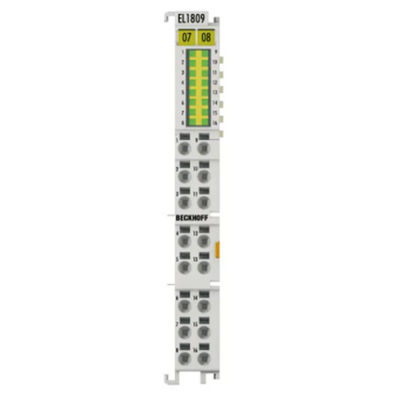

BECKHOFF EL1809 EtherCAT 16-Channel Digital Input Module

  • BECKHOFF EL1809 EtherCAT 16-Channel Digital Input Module
Place of Origin GERMANY
Brand Name BECKHOFF
Certification CO
Model Number EL1809
Minimum Order Quantity 1pc
Packaging Details BRAND NEW WITH FACTORY PACKAGE
Delivery Time 2-3 days
Payment Terms T/T
Supply Ability 100PCS PER WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PART NO. EL1809 Weight 0.2 KG
Actual Price Negotiabled Condition New Original With Sealed
Application Oil And Gas Factory Color Normal
Leave a Message
Product Description

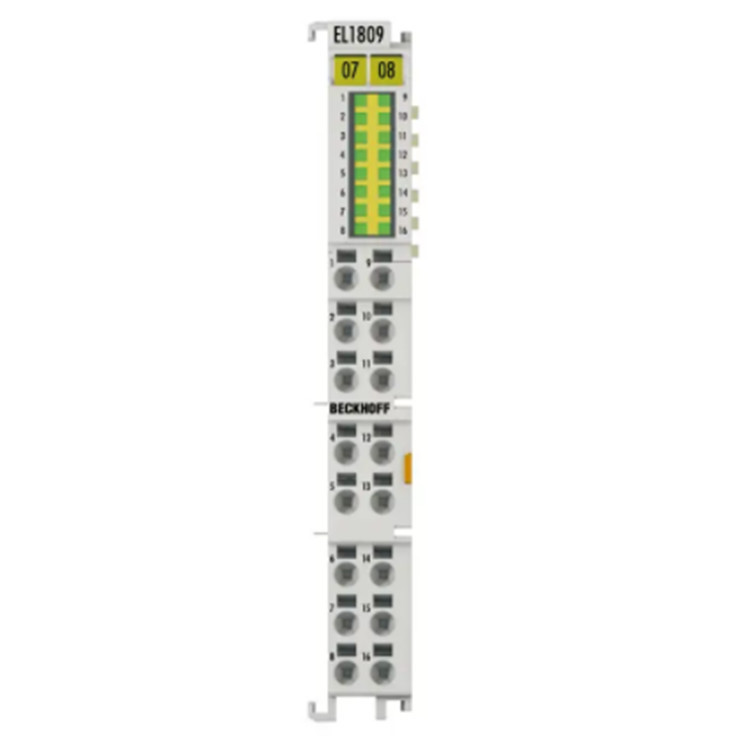

BECKHOFF EL1809 EtherCAT 16-Channel Digital Input Module





Description



 Model

EL1809

Brand/Manufacturer

Beckhoff

DataSheet/Catalogue

In PDF File

Weight/Dimension

12 mm x 100 mm x 68 mm

Condition

Brand new

Description
EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms





Technical Data



The EL1809 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has 16 channels, whose signal states are indicated by LEDs. The power contacts are connected through. With the EL1809, the reference ground for all inputs is the 0 V power contact.

Special features:

input specification type 1/3
no bouncing due to mechanical switches thanks to 3 ms input filter
tool-free connection by direct plug-in technique for solid wire conductors
space-saving use in the control cabinet
direct connection of multi-channel sensors in 1-wire connection technology in the smallest space
increased packing density with 16 connection points in the housing of a 12 mm terminal block
