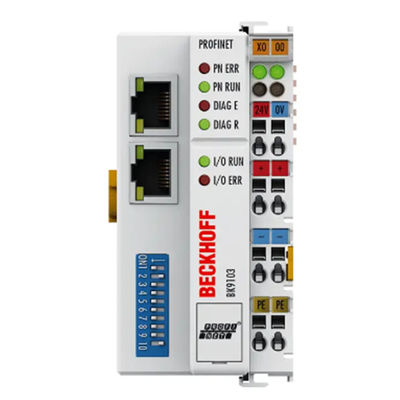

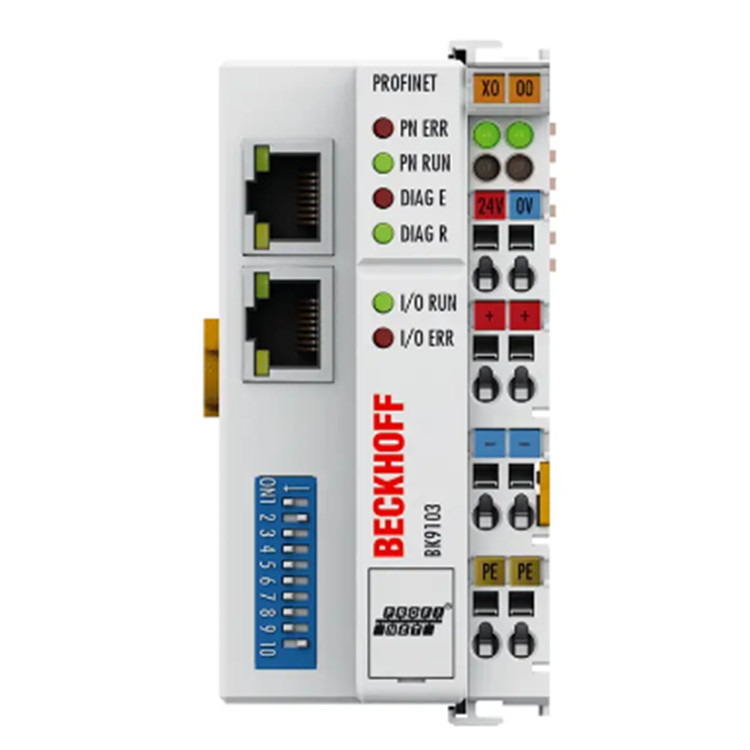

BECKHOFF BK9103 EtherCAT PROFINET Bus Coupler Module

  • BECKHOFF BK9103 EtherCAT PROFINET Bus Coupler Module
Place of Origin GERMANY
Brand Name BECKHOFF
Certification CO
Model Number BK9103
Minimum Order Quantity 1pc
Packaging Details BRAND NEW WITH FACTORY PACKAGE
Delivery Time 2-3 days
Payment Terms T/T
Supply Ability 100PCS PER WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PART NO. BK9103 Weight 0.2 KG
Actual Price Negotiabled Condition New Original With Sealed
Application Oil And Gas Factory Color Normal
Leave a Message
Product Description

BECKHOFF BK9103 EtherCAT PROFINET Bus Coupler Module





Description



 Model

BK9103

Brand/Manufacturer

Beckhoff

DataSheet/Catalogue

In PDF File

Weight/Dimension

51 mm x 100 mm x 69 mm

Condition

Brand new

Description
PROFINET Bus Coupler,10/100 Mbit/s, automatic recognition of the transmission rate





Technical Data



The BK9103 Bus Coupler connects PROFINET RT with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals (255 with K-bus extension) and one end terminal.

The Bus Couplers recognize the terminals to which they are connected, and perform the assignment of the inputs and outputs to the words of the process image automatically. The BK9103 Bus Coupler supports 10 Mbit/s and 100 Mbit/s Ethernet. Connection is through normal RJ45 connectors. The IP address is set on the DIP switch (offset to a freely selectable start address). In networks with DHCP (a service for the allocation of the logical IP address to the physical node address [MAC-ID]) the Bus Coupler obtains its IP address from the DHCP server.

The BK9103 contains a 3-port switch. Two ports operate external on RJ45 connectors and can be utilized. The I/O stations can thus be configured with a line topology instead of the classic star topology. In many applications this significantly reduces the wiring effort and the cabling costs. The maximum distance between two couplers is 100 m. Up to 20 BK9103 Bus Couplers are cascadable, so that a maximum line length of 2 km can be achieved.
