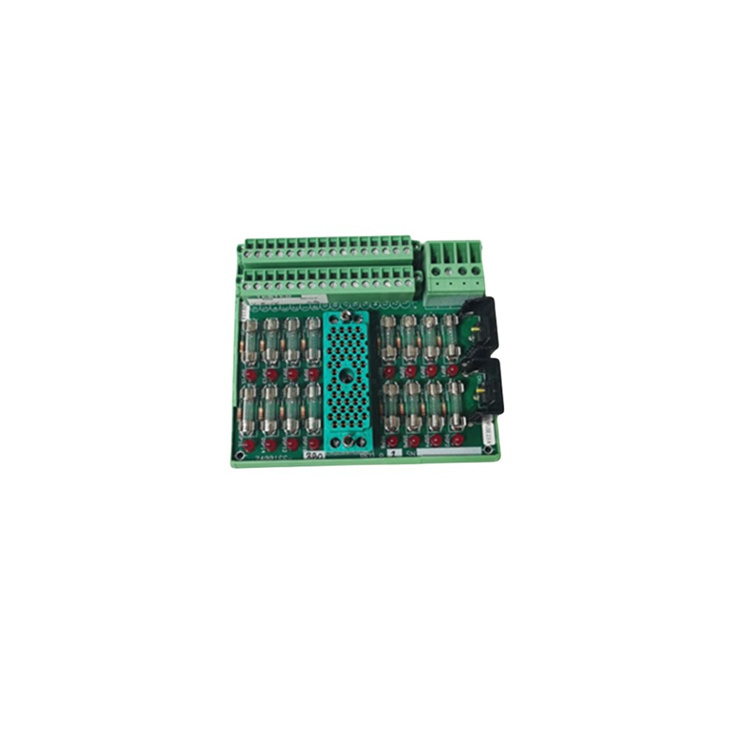

Triconex 9565-810 Invensys Tricon Analog Input Terminal Module with 1 Year Warranty

  • Triconex 9565-810 Invensys Tricon Analog Input Terminal Module with 1 Year Warranty
Place of Origin USA
Brand Name TRICONEX
Certification TUV SIL 3, CE, UL, CO
Model Number 9565-810
Minimum Order Quantity 1pc
Price Negotiated
Packaging Details BRAND NEW ORIGINAL FACTORY SEALED PACKAGE
Delivery Time 2-3 working days
Payment Terms T/T,Western Union,PayPal
Supply Ability 100pcs per week
Product Details
PART NO. 9565-810 Condition 100% Brand New Original Factory Sealed
Warranty 12 Months Channels 32 Points
Input Signal 4-20mA, 0-5VDC, 0-10VDC Application Oil And Gas, Petrochemical, Power Generation
Highlight

Triconex Tricon analog input module

,

Triconex 9565-810 terminal module

,

Tricon analog module with warranty
Leave a Message
Product Description
Triconex 9565-810 Analog Input Terminal Module
The Triconex 9565-810 is an Invensys Tricon Analog Input Terminal Module designed for use with the Tricon Safety Instrumented System (SIS). It serves as the interface between field analog input signals and the Tricon controller triple modular redundant (TMR) architecture, ensuring high-integrity signal acquisition for critical process safety applications in oil and gas, petrochemical, power generation, and other industrial automation environments.
Key Features
  • Triple Modular Redundant (TMR) architecture for fault-tolerant operation
  • Analog input signal termination and conditioning
  • Compatible with Tricon v10.0 and later systems
  • Hot-swappable for online replacement without interrupting process
  • Supports 4-20mA, 0-5V, and 0-10V analog input signals
  • Built-in diagnostics for continuous health monitoring
Technical Specifications
Parameter Specification
Part Number 9565-810
Manufacturer Triconex / Invensys / Schneider Electric
Module Type Analog Input Terminal Module
System Compatibility Tricon Safety Instrumented System (SIS)
Redundancy Triple Modular Redundant (TMR)
Input Signal Types 4-20mA, 0-5VDC, 0-10VDC
Number of Channels 32 Points
Condition 100% Brand New Original Factory Sealed
Warranty 12 Months from Date of Shipment
Operating Temperature 0 to 60°C
Approvals TÜV SIL 3 Certified, CE, UL
Compatible Triconex Modules Reference
Model Description Type
9563-810 Analog Input Terminal Module Analog Input
9565-810 Analog Input Terminal Module Analog Input
9566-810F Cable Terminals Module Terminal
9761-210 Analog Input Terminal Module Analog Input
9853-610 Analog Terminal Module Analog I/O
3703E Isolated Analog Input Module Analog Input
3805E Analog Output Module Analog Output
8310 Main Processor Module Processor
4310 Communication Module Communication
Applications
Emergency Shutdown (ESD) Fire & Gas Detection Burner Management (BMS) Turbine Control Compressor Protection Pipeline Safety
Quality & Warranty
  • 100% Brand New Original — Factory sealed with original Triconex packaging
  • 12-Month Full Warranty — Coverage from date of shipment against manufacturing defects
  • TÜV SIL 3 Certified — Meets highest safety integrity requirements
  • Fast Global Shipping — 2-3 business days lead time for stocked items
  • Technical Support — Pre-sales and after-sales engineering assistance included
For pricing, availability, and technical inquiries, please contact our sales team. We stock over 20,000 PLC and DCS modules ready for immediate shipment worldwide.
